Fix Jeep Compass Screen Lines: DIY Solutions & Professional Repair Guide 2025

Those frustrating horizontal or vertical lines appearing on your Jeep Compass’s infotainment screen can turn your daily drive into a source of constant irritation. We’ve seen countless Compass owners struggle with this common yet disruptive display issue that affects everything from navigation to entertainment systems.

The good news? You’re not alone in dealing with screen line problems, and more importantly, there are proven answers that don’t require expensive dealership visits. Whether you’re seeing thin white lines, colorful streaks, or flickering displays, we’ll walk you through the most effective troubleshooting methods that actually work.

Ready to restore your screen to crystal-clear perfection? We’ve compiled the definitive guide to diagnosing and fixing Jeep Compass screen lines, drawing from real owner experiences and expert technical knowledge. Let’s get your infotainment system back to delivering the seamless experience you deserve.

What Are Jeep Compass Screen Lines?

Screen lines on Jeep Compass infotainment systems appear as horizontal or vertical streaks across the display surface. These visual disruptions manifest in different patterns including single thin lines, multiple parallel lines, or scattered line formations that interfere with touchscreen functionality.

Horizontal lines typically run from left to right across the 8.4-inch Uconnect display, often appearing in clusters of 3 to 5 lines. Vertical lines extend from top to bottom of the screen and frequently concentrate near the edges or center portions of the display area.

The lines present themselves in various colors depending on the underlying display issue:

  • White lines indicating backlight bleeding problems
  • Black lines suggesting LCD panel damage
  • Colored lines (red, green, blue) pointing to pixel row or column failures
  • Flickering lines that appear and disappear intermittently

Display anomalies affect different Jeep Compass model years with varying frequency. Model years 2017 through 2021 show higher incidence rates of screen line problems compared to newer 2022 and 2023 models. The 2018 and 2019 Compass models experience the most reported cases of persistent line issues.

These screen distortions impact several infotainment functions including navigation display clarity, backup camera visibility, and touchscreen responsiveness. Lines often worsen during temperature extremes, becoming more pronounced in cold weather conditions below 32°F or hot weather above 95°F.

Physical characteristics of the lines vary in thickness from hairline-thin streaks measuring less than 1 pixel wide to broader bands spanning 10 to 15 pixels. Some lines remain static in position while others shift locations across the screen during system operation.

Common Causes of Screen Lines in Jeep Compass

jeep compass screen lines

Screen lines in your Jeep Compass stem from multiple technical failures and environmental conditions. Understanding these root causes helps us identify the most effective repair approach for each exact situation.

Faulty Display Unit

LCD chip driver failure represents the primary hardware malfunction behind screen line problems. Black and white stripes appear when these drivers stop functioning properly, creating distinctive patterns across the display surface. Half blackouts often accompany driver failures, affecting portions of the screen while leaving other areas functional.

Delamination occurs when screen layers separate internally, producing visible distortions and line formations. This manufacturing defect typically develops over time as adhesive bonds deteriorate between display components.

Loose or Damaged Wiring Connections

Electrical connection problems create intermittent screen line issues that worsen with vehicle vibration. Loose harness connections behind the infotainment unit cause signal interruptions that manifest as horizontal or vertical lines. Damaged wiring from improper installation or wear creates voltage fluctuations affecting display quality.

Corrosion at connection points develops moisture exposure, particularly in humid climates or after water intrusion events. Ground connection failures specifically cause erratic line patterns that shift during vehicle operation.

Software Glitches and Firmware Issues

System software bugs generate temporary line displays that disappear after restarting the infotainment unit. Regular software updates prevent these glitches from recurring, as Jeep releases patches addressing known display problems. Firmware corruption creates persistent line issues that resist basic troubleshooting attempts.

Professional diagnostic tools become necessary when software problems persist beyond simple restart procedures. Corrupted system files require complete software reinstallation at certified service centers.

Temperature and Environmental Factors

Heat exposure from direct sunlight causes LCD panels to expand unevenly, creating temporary line distortions across the screen. Dashboard temperatures exceeding 140°F trigger these thermal effects, particularly during summer months in hot climates.

Environmental contaminants like dust particles infiltrate display assemblies through inadequate sealing. Chemical substances from cleaning products damage screen coatings, leading to permanent line formations that resist standard cleaning methods. Cold temperatures below 32°F make LCD components contract, occasionally producing temporary line artifacts until the system warms up.

Diagnosing Screen Line Problems

1 jeep compass screen lines

Diagnosing screen line problems in your Jeep Compass requires systematic examination of both physical components and software systems. We can identify the root cause through targeted inspection methods and reset procedures.

Visual Inspection Methods

Physical damage assessment forms the foundation of our diagnostic approach. We examine the screen surface for cracks, scratches, or impact marks that create visible line patterns across the display.

Temperature sensitivity testing reveals hardware-related failures in LCD components. We monitor how screen lines behave during vehicle warm-up cycles and extreme weather conditions, as temperature variations often trigger or worsen display issues.

Line pattern analysis helps distinguish between different failure types. We observe whether lines appear as:

  • Constant black and white stripes
  • Intermittent flickering patterns
  • Temperature-dependent distortions
  • Static versus shifting line positions

LCD chip driver evaluation focuses on functional testing when the screen operates normally even though visible lines. We verify touchscreen responsiveness and menu navigation capabilities to isolate display-exact problems from broader system failures.

Software Reset Procedures

Button combination reset offers a potential software-based solution for certain Jeep models. We press and hold the volume and tune buttons simultaneously to trigger system reinitialization, though this method’s effectiveness varies across different Compass model years.

System restart sequence involves turning the vehicle off completely, waiting 2-3 minutes, then restarting to allow the infotainment system to refresh its display drivers. We repeat this process multiple times if initial attempts don’t resolve the line issues.

Factory reset consideration becomes necessary when simple restart procedures fail to eliminate screen lines. We access the system settings menu to restore default configurations, though this approach may not address hardware-related LCD chip driver failures that cause persistent line patterns.

Repair Solutions and Fixes

2 jeep compass screen lines

We’ve identified effective answers that address screen line issues through both software and hardware approaches. Our comprehensive repair strategies range from simple DIY fixes to professional replacement services.

DIY Troubleshooting Steps

Hard reset procedures resolve many software-related screen line problems without professional intervention. Disconnect the negative battery terminal for 5 minutes to drain system power and reset the Uconnect display completely.

USB device removal eliminates potential software conflicts that cause screen glitches. Unplug all connected USB drives since corrupt or virus-infected files disrupt system operation and create display anomalies.

Software update verification ensures your Uconnect system runs the latest firmware from Jeep’s official website. Updated software patches often resolve known display issues and improve overall system stability.

Physical screen replacement becomes necessary when hardware failures cause persistent lines or delamination. Remove the head unit using trim tools, detach the faulty display, and install the new screen following step-by-step video guides. This process typically takes less than 60 minutes for most owners.

Professional Repair Options

Local dealership services provide comprehensive diagnosis and replacement for malfunctioning displays. Dealership repairs often exceed $1,200 for complete multimedia display replacement including parts and labor costs.

Specialized repair companies like Circuit Board Medics focus specifically on Jeep Compass touchscreen failures. These services address common problems including poor touch response and peeling digitizers at competitive rates.

Warranty coverage options vary between repair providers and may include extended protection for replacement components. Professional repairs typically offer service guarantees that DIY approaches can’t provide.

Screen Replacement Considerations

Compatible part selection requires using part finder tools since Uconnect screens vary significantly between model years. Incorrect parts lead to installation failures and compatibility issues with existing vehicle systems.

Component quality standards influence long-term reliability and performance of replacement screens. Genuine or reputable aftermarket screens outperform cheap counterfeit products that often fail within months.

Professional installation benefits include proper calibration, warranty protection, and technical support for complex integration issues. Expert technicians ensure optimal performance and prevent damage during installation procedures.

Prevention Tips for Screen Line Issues

3 jeep compass screen lines

Regular maintenance protects your Jeep Compass infotainment screen from developing line distortions. We recommend establishing a weekly cleaning routine using microfiber cloths to remove dust and fingerprints without scratching the display surface. Chemical cleaners like ammonia-based products can damage the screen’s coating and touch sensitivity over time.

Temperature Protection Strategies

Direct sunlight exposure gradually deteriorates LCD components in your Compass dashboard. Park in shaded areas whenever possible to minimize heat buildup around the infotainment system. Dashboard sunshades create an effective barrier against UV radiation that can accelerate screen degradation. Extreme cold temperatures also stress display components, so garage parking during winter months extends screen lifespan.

Software Maintenance Practices

Uconnect system updates address known bugs that contribute to display glitches. We suggest checking for firmware updates quarterly through your vehicle’s settings menu or the official Mopar website. Automatic update notifications help ensure your system runs the latest software version with improved stability features.

Physical Protection Methods

Gentle interaction with the touchscreen prevents internal hardware damage that causes line formation. Avoid pressing forcefully on the display surface, as excessive pressure can create loose connections within the LCD assembly. Dashboard impacts from objects or sudden stops can also jar internal components loose, leading to persistent line issues.

Environmental Contamination Prevention

Hand sanitizers and harsh cleaning products seep into screen edges, causing chemical damage to display drivers. Keep these substances away from your infotainment area during routine vehicle cleaning. Dashboard protectants containing silicone can create residue buildup that interferes with touch sensitivity and screen clarity.

Early Warning Recognition

Intermittent flickering often precedes permanent line formation in Compass displays. Address these early symptoms immediately through system restarts rather than ignoring them. Documenting when glitches occur helps identify patterns related to temperature changes or exact usage scenarios, enabling more targeted prevention efforts.

Cost Analysis of Repairs

4 jeep compass screen lines

Understanding repair costs helps Jeep Compass owners make informed decisions about fixing screen line issues. We’ve analyzed multiple repair options to provide accurate pricing information based on current market data.

DIY Screen Replacement Options

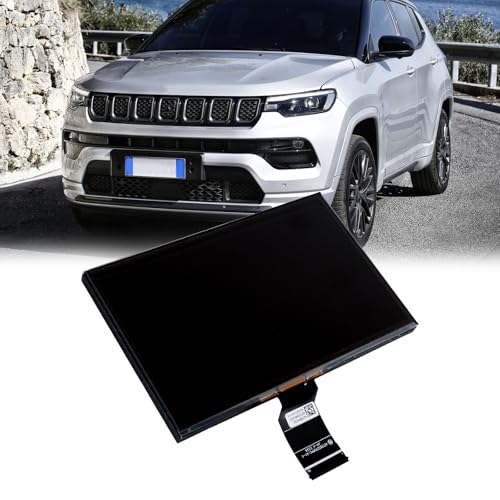

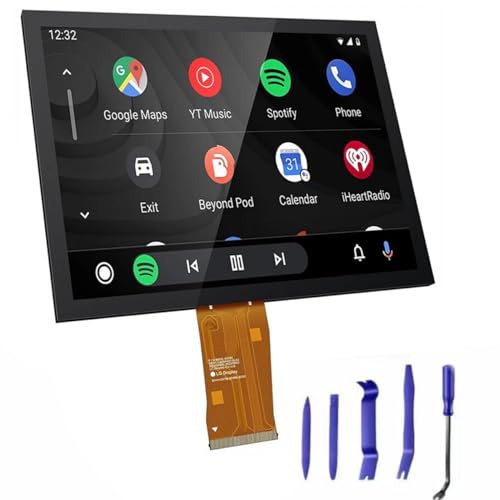

Self-replacement represents the most budget-friendly approach for addressing screen line problems. Amazon and similar platforms offer replacement screens for $80-$100, making this option attractive for mechanically inclined owners. DIY guides provide step-by-step instructions that walk users through the installation process without requiring specialized tools.

The total investment for DIY repairs includes the replacement screen cost plus minimal tools if you don’t already own basic automotive equipment. Most installations take 2-3 hours for first-time installers following detailed video tutorials.

Professional Repair Service Costs

Specialized repair companies offer middle-ground answers between DIY and dealership repairs. Circuitboard Medics provides plug-and-play repairs using high-quality components, eliminating programming requirements for the 8.4-inch infotainment screen. Their mail-in service streamlines the repair process for customers nationwide.

ISS Auto performs repairs to OEM specifications, ensuring compatibility with existing vehicle systems. Both services require shipping the damaged unit for professional diagnosis and repair, typically taking 5-7 business days for completion.

Repair Option Cost Range Time Required Warranty Coverage
DIY Replacement $80-$100 2-3 hours Varies by supplier
Professional Repair Varies by provider 5-7 business days Service-dependent
Dealership Repair $850+ 1-2 days Limited warranty

Dealership Repair Pricing

Dealership repairs command premium pricing due to OEM parts and certified technician labor. Internal screen issues not covered under warranty can cost $850 or more, representing the highest-cost repair option available. Complex diagnostic procedures and genuine Jeep parts contribute to elevated pricing structures.

Warranty coverage varies significantly based on vehicle age and existing protection plans. Out-of-warranty repairs face full retail pricing without manufacturer subsidies or discounts.

Cost-Effectiveness Comparison

Budget-conscious owners often choose DIY replacement when comfortable with basic automotive work. Professional repair services balance cost and convenience for those seeking expert installation without dealership premiums. Dealership repairs suit owners prioritizing manufacturer warranties and certified service records.

Screen replacement timing affects overall value since delayed repairs can worsen underlying issues. Early intervention through any repair method typically costs less than addressing multiple system failures simultaneously.

Conclusion

We’ve covered everything you need to know about tackling screen line issues in your Jeep Compass. From understanding the root causes to implementing effective answers these problems don’t have to drain your wallet or leave you frustrated.

Whether you choose the DIY route or prefer professional assistance the key is acting quickly when you notice the first signs. Remember that prevention through proper care and regular maintenance will save you both time and money in the long run.

Your Compass’s infotainment system is meant to enhance your driving experience not detract from it. With the knowledge and strategies we’ve shared you’re now equipped to keep that screen running smoothly for years to come.

Frequently Asked Questions

What causes horizontal and vertical lines on my Jeep Compass infotainment screen?

Screen lines are typically caused by faulty LCD chip drivers, loose wiring connections, software glitches, or environmental damage. LCD panel delamination and backlight bleeding are common hardware issues, while firmware corruption can create software-related line problems. Extreme temperatures and exposure to contaminants can worsen these conditions.

Which Jeep Compass model years are most affected by screen line issues?

Model years 2017 through 2021 are most prone to screen line problems, with 2018 and 2019 models experiencing the highest frequency of issues. These years commonly show horizontal or vertical streaks that can affect touchscreen functionality and display clarity.

How can I diagnose if my screen lines are hardware or software related?

Perform a visual inspection for physical damage, test temperature sensitivity by observing changes in extreme conditions, and analyze line patterns. Try a soft reset using button combinations – if lines disappear temporarily, it’s likely software-related. Persistent lines usually indicate hardware failure.

Can I fix Jeep Compass screen lines myself?

Yes, several DIY solutions exist including hard resets, removing USB devices, updating Uconnect software, and performing factory resets. For hardware issues, screen replacement is possible but requires technical skill. DIY screen replacement typically costs $80-$100 and takes 2-3 hours.

How much does professional repair cost for screen line issues?

Professional repair costs vary significantly. Dealership repairs often exceed $850 due to OEM parts and certified labor. Specialized repair companies offer competitive rates with service guarantees. Local repair shops may provide more affordable options, typically taking 5-7 business days for completion.

How can I prevent screen lines from developing on my Jeep Compass?

Maintain a weekly cleaning routine with microfiber cloths, avoid chemical cleaners, park in shaded areas, and use dashboard sunshades for temperature protection. Update Uconnect software quarterly, interact gently with the touchscreen, and address early warning signs like intermittent flickering promptly.

Will a factory reset fix my screen line problem?

Factory resets can resolve software-related line issues but won’t fix hardware problems like LCD panel damage or faulty connections. If lines persist after a factory reset, the issue is likely hardware-related and requires physical repair or screen replacement.

How long do screen repairs typically take?

DIY repairs take 2-3 hours for screen replacement. Professional services usually require 5-7 business days, depending on parts availability and repair complexity. Dealership repairs may take longer due to scheduling and OEM part ordering requirements.
