How to Measure Rim Bolt Pattern: Step-by-Step Guide for Perfect Wheel Fitment

Getting the wrong wheels for your car can be frustrating and expensive. We’ve all been there – you find the perfect set of rims only to discover they don’t fit your vehicle’s bolt pattern. Understanding how to measure your rim bolt pattern correctly is essential before making any wheel purchase.

Your wheel’s bolt pattern determines compatibility with your vehicle’s hub. This measurement consists of the number of bolt holes and the diameter of the circle they form. Whether you’re upgrading to aftermarket wheels or replacing damaged rims knowing how to measure this pattern yourself saves time and prevents costly mistakes.

We’ll walk you through the simple steps to accurately measure your rim bolt pattern using basic tools you likely already have. With our straightforward method you’ll confidently identify your vehicle’s specifications and ensure your next wheel purchase fits perfectly every time.

What Is a Rim Bolt Pattern

Rim bolt patterns define the arrangement of mounting holes that secure wheels to your vehicle’s hub assembly. The pattern consists of two critical measurements: the number of bolt holes and the pitch circle diameter (PCD) that connects their centers.

Most vehicles use bolt patterns ranging from 4 to 8 holes, with 5-bolt configurations being the most common on passenger cars. The pitch circle diameter represents the imaginary circle that passes through each bolt hole’s center point. Standard PCD measurements include 4x100mm, 5×114.3mm, and 6×139.7mm depending on your vehicle’s make and model.

We express bolt patterns using a exact notation format. The first number indicates the quantity of bolt holes while the second number represents the PCD measurement in millimeters. A 5×114.3 pattern means your wheel has 5 bolt holes positioned on a circle with a 114.3mm diameter.

Different manufacturers often use distinct bolt patterns for their vehicles. European cars frequently feature 5x112mm patterns while American vehicles commonly use 5×114.3mm configurations. Japanese manufacturers typically employ 4x100mm or 5×114.3mm patterns across their model ranges.

The bolt pattern directly affects wheel compatibility with your vehicle’s hub. Matching patterns ensure proper wheel mounting and maintain safe driving conditions. Incorrect patterns prevent wheel installation or create dangerous mounting situations that compromise vehicle safety and performance.

Why Measuring Bolt Pattern Matters

how to measure rim bolt pattern

Measuring bolt pattern accuracy ensures proper wheel fitment and maintains vehicle safety standards. Incorrectly sized wheels create improper fitment issues that compromise both safety and performance during operation.

Wrong bolt patterns distribute stress unevenly across the wheel and hub assembly. This uneven distribution potentially leads to catastrophic failure during vehicle use. The consequence affects not only the driver but also passengers and other road users.

Safety concerns multiply when wheels don’t match manufacturer specifications. Improperly fitted wheels can detach from the vehicle or cause steering instability at highway speeds. These scenarios create dangerous driving conditions that put lives at risk.

Performance degradation occurs immediately with mismatched bolt patterns. Vibrations increase throughout the vehicle cabin when wheels aren’t properly secured. Handling characteristics change unpredictably during cornering and braking maneuvers.

Financial implications extend beyond initial wheel purchase costs. Incorrect measurements force vehicle owners to return or exchange wheels that don’t fit. Additional expenses include mounting fees, balancing services, and potential shipping costs for replacement wheels.

Professional installation becomes impossible with incompatible bolt patterns. Tire shops refuse to mount wheels that don’t match vehicle specifications due to liability concerns. Vehicle owners face delays and additional trips to complete their wheel upgrades.

Warranty coverage becomes void when using incorrect bolt patterns. Wheel manufacturers specifically exclude damage caused by improper fitment from their warranty terms. Insurance companies may also deny claims related to accidents caused by improperly fitted wheels.

Tools You Need to Measure Bolt Pattern

1 how to measure rim bolt pattern

Measuring rim bolt patterns accurately requires exact tools that ensure precision and eliminate guesswork. We’ve compiled the essential equipment that makes this measurement process straightforward and reliable.

Ruler or measuring tape serves as the primary tool for determining bolt pattern dimensions. Millimeter measurements provide greater precision than inches when measuring the pitch circle diameter. Digital calipers offer enhanced accuracy for measuring distances between bolt hole centers, particularly useful for smaller bolt patterns where fractional measurements matter.

Measuring tape works effectively for larger wheels with bolt patterns exceeding 150mm in diameter. Standard tape measures typically provide sufficient accuracy for most passenger vehicle applications. Flexible measuring tapes conform better to curved wheel surfaces compared to rigid rulers.

Marker helps identify exact lug holes during the measurement process. Marking the starting hole prevents confusion when counting around the wheel circumference. Water-based markers remove easily from wheel surfaces without causing damage or permanent staining.

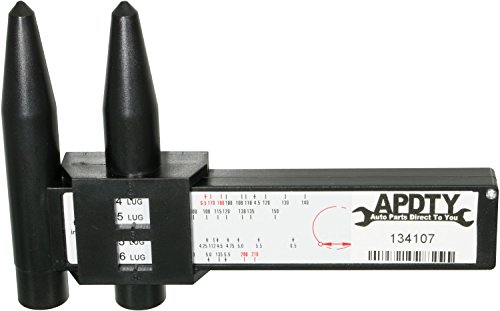

Wheel bolt pattern gauge represents the most specialized tool for this task. Professional tire shops commonly use these gauges for quick pattern identification. Digital versions display measurements instantly and store multiple pattern configurations for comparison purposes.

Tool Accuracy Level Best Use Case Cost Range
Measuring tape ±1mm Large diameter patterns $5-15
Digital calipers ±0.1mm Precise measurements $15-50
Bolt pattern gauge ±0.5mm Professional use $30-100
Standard ruler ±2mm Basic measurements $2-8

Basic measuring equipment found in most households often suffices for bolt pattern measurement. Automotive tool kits frequently include measuring devices suitable for this purpose. Professional mechanics recommend investing in quality measuring tools for repeated use across multiple vehicles.

Smartphone apps complement physical measuring tools by providing bolt pattern databases and measurement guides. These digital resources help verify measurements against manufacturer specifications. Camera-based measurement apps offer reasonable accuracy for preliminary assessments but shouldn’t replace physical measurements for final verification.

How to Measure 4-Bolt and 6-Bolt Patterns

2 how to measure rim bolt pattern

Exact measuring techniques vary between different bolt configurations. We’ll walk through the precise steps for measuring both 4-bolt and 6-bolt patterns using the tools we’ve outlined.

Measuring 4-Bolt Patterns

Count the bolt holes to confirm you’re working with a 4-bolt configuration. Place your ruler or measuring tape at the center of one bolt hole and extend it directly across to the center of the opposite bolt hole. This straight-line measurement gives you the bolt circle diameter immediately.

Record the measurement in millimeters for accuracy, as most manufacturers express bolt patterns in metric units. Convert inches to millimeters by multiplying by 25.4 if your measuring tool displays imperial units. A measurement of 100 millimeters creates a bolt pattern designation of “4×100” for example.

Digital calipers provide the most precise readings for 4-bolt patterns since the measurement spans the full diameter. Position the caliper jaws at the exact center points of opposite bolt holes to eliminate measurement errors. Double-check your reading by measuring a second time from a different starting bolt hole.

Measuring 6-Bolt Patterns

Identify the 6 bolt holes arranged in a circular pattern around the wheel hub. Measure from the center of one bolt hole to the center of the bolt hole positioned directly across from it, which represents the bolt circle diameter. This measurement requires careful alignment since 6-bolt patterns create a more complex geometric arrangement than 4-bolt configurations.

Use the same measuring technique as 4-bolt patterns but pay extra attention to centering your measurement points. A measurement of 139.7 millimeters produces a bolt pattern designation of “6×139.7” following standard notation. This particular measurement appears frequently on pickup trucks and SUVs manufactured by various brands.

Verify your measurement accuracy by taking readings from multiple bolt hole pairs across the diameter. Each measurement should produce identical results when taken correctly from center point to center point. Professional wheel shops often use specialized bolt pattern gauges for 6-bolt configurations to ensure consistent accuracy across different wheel styles.

How to Measure 5-Bolt Patterns

3 how to measure rim bolt pattern

Measuring 5-bolt patterns requires a different approach than the straightforward methods we use for 4-bolt and 6-bolt configurations. The odd number of bolt holes means we can’t measure directly across opposite holes since none exist in this arrangement.

We measure from the center of one lug hole across to the center of the hole positioned two spaces away. This technique skips one lug hole in between and provides the diameter of the circle passing through all five bolt holes. Skip counting helps us identify the correct holes when working around the circular pattern.

Measurement Type Starting Point End Point Skip Pattern
5-bolt PCD Center of hole 1 Center of hole 3 Skip 1 hole
Distance Lug center to lug center Two positions away Every other hole

Digital calipers deliver the most accurate readings for 5-bolt measurements since precision matters significantly in bolt pattern identification. Position the caliper tips precisely at the center points of the selected lug holes to avoid measurement errors. Center-to-center accuracy determines whether our measurement translates to the correct bolt pattern specification.

Common 5-bolt patterns include 5×4.5 inches and 5×114.3 millimeters depending on the vehicle manufacturer. Convert measurements between imperial and metric units when necessary since different regions use different measurement standards. Record measurements in both systems to ensure compatibility when purchasing wheels from various suppliers.

Visualizing the bolt pattern helps confirm our measurement accuracy by tracing an imaginary circle through all five lug hole centers. Mark each lug hole lightly with a pencil or use reference points to maintain consistency during multiple measurements. Take measurements from different hole combinations to verify our initial reading and eliminate potential errors.

Professional wheel shops use specialized bolt pattern gauges that provide instant readings for 5-bolt configurations. These tools eliminate guesswork and deliver consistent results across different wheel sizes and styles. Compare our manual measurements with manufacturer specifications or bolt pattern charts to confirm the correct fitment before making wheel purchases.

How to Measure 8-Bolt and 10-Bolt Patterns

4 how to measure rim bolt pattern

8-bolt and 10-bolt patterns follow the same measurement approach since both configurations have even numbers of lug holes. Measuring these patterns requires identifying two lug holes positioned directly opposite each other on the wheel. Digital calipers provide the most accurate readings for these heavy-duty wheel configurations commonly found on trucks and commercial vehicles.

Counting the lug holes first confirms whether you’re dealing with an 8-bolt or 10-bolt pattern. Position your measuring tool at the center point of one lug hole and extend it straight across to the center of the opposite hole. This center-to-center distance represents the bolt circle diameter that we use in the final bolt pattern notation.

8-bolt patterns typically measure between 165mm to 200mm in diameter depending on the vehicle type. Commercial trucks and heavy-duty applications often use these configurations for enhanced load distribution. Recording your measurement in millimeters ensures compatibility with most wheel manufacturer specifications.

10-bolt patterns appear on larger commercial vehicles and specialized heavy-duty applications. These patterns commonly range from 225mm to 285mm in diameter. Professional wheel shops frequently encounter these patterns on dual-wheel setups and large commercial trucks.

Verification becomes crucial with larger bolt patterns since measurement errors amplify across greater distances. Taking multiple measurements from different opposite hole pairs confirms accuracy. Express your final measurement using the standard notation format such as 8x165mm or 10x225mm.

Bolt Pattern Type Common Diameter Range Typical Applications
8-bolt 165mm – 200mm Heavy-duty trucks, commercial vehicles
10-bolt 225mm – 285mm Large commercial trucks, dual-wheel setups

Accurate measurement ensures proper wheel fitment which maintains vehicle safety standards across all driving conditions.

Common Bolt Pattern Measurements by Vehicle Type

5 how to measure rim bolt pattern

Different vehicle categories use exact bolt patterns that manufacturers design for their weight requirements and performance specifications. Understanding these patterns helps you identify the correct measurements for your vehicle type.

Passenger Cars

Passenger cars typically feature 4 or 5 bolt configurations with smaller diameter measurements compared to larger vehicles. The 4x100mm pattern appears frequently on compact cars like the Honda Civic and various Asian imports. Most midsize sedans and sports cars use the 5×114.3mm pattern, which you’ll find on Ford Mustangs and many American vehicles.

European manufacturers often carry out the 5x112mm pattern across their vehicle lines, including BMW, Mercedes-Benz, and Audi models. Some economy vehicles still use the 5x100mm pattern, particularly Subaru and older Volkswagen models. These measurements remain consistent within manufacturer families, making wheel selection more predictable for passenger car owners.

Passenger Car Patterns Diameter (mm) Common Applications
4×100 100 Compact cars, Honda Civic
5×100 100 Subaru models, VW Golf
5×112 112 European luxury vehicles
5×114.3 114.3 Ford Mustang, many sedans

Trucks and SUVs

Trucks and SUVs require larger bolt patterns to support increased weight capacity and towing demands. The 5x127mm pattern dominates American truck manufacturers, appearing on Jeep Wranglers and many Chrysler products. This pattern converts to 5×5 inches in imperial measurements.

Heavy duty applications use 6 bolt configurations for enhanced load distribution across the wheel mounting surface. The 6x135mm pattern serves Ford F-150 trucks and similar applications, while the 6×139.7mm pattern appears on Toyota Tacomas and Chevy Silverados. Full size trucks often employ 8×165.1mm or 8x170mm patterns for maximum strength and stability.

Truck/SUV Patterns Diameter (mm) Common Applications
5×127 127 Jeep Wrangler, Chrysler trucks
6×135 135 Ford F-150 series
6×139.7 139.7 Toyota Tacoma, Chevy Silverado
8×165.1 165.1 Heavy duty applications
8×170 170 Ford Super Duty trucks

Troubleshooting Measurement Errors

6 how to measure rim bolt pattern

Measurement accuracy becomes critical when determining your rim’s bolt pattern. We’ve identified the most common errors that lead to incorrect bolt pattern readings and their answers.

Center-to-center measurements represent the most frequent source of error. Many people measure from the edge of one lug hole to the edge of another hole, which produces inaccurate results. We measure from the center point of one hole to the center point of the opposite hole for precise readings.

Counting errors occur more often than expected during the initial assessment. Double-checking the number of lug holes prevents costly mistakes when ordering new wheels. We recommend counting the holes twice before proceeding with measurements.

Caliper precision significantly improves measurement accuracy compared to standard tape measures. Digital calipers provide readings to the nearest 0.1mm, eliminating guesswork from the process. We use calipers for all odd-numbered bolt patterns where precision matters most.

Tape measure positioning creates parallax errors when the measurement isn’t read at eye level. Keeping the tape measure flat against the wheel surface and reading measurements directly from above ensures accurate results. We verify tape measure readings by taking measurements from multiple angles.

Odd pattern verification requires additional confirmation due to the complex geometry involved. Using a bolt pattern gauge or consulting reference guides helps validate measurements for 5-bolt configurations. We compare our measurements to known bolt patterns since slight discrepancies often indicate measurement errors.

Common Bolt Patterns Measurement (mm) Vehicle Type
4×100 100.0 Compact cars
5×114.3 114.3 Midsize sedans
5×112 112.0 European vehicles
6×135 135.0 Large SUVs

Reference documentation provides the final verification step for uncertain measurements. Vehicle owner’s manuals contain bolt pattern specifications, and wheel markings often display the correct measurements. We cross-reference our measurements with these sources before making wheel purchases.

Using Online Bolt Pattern Tools and Charts

7 how to measure rim bolt pattern

Online bolt pattern tools simplify the verification process after you’ve measured your rim’s bolt pattern. We recommend inputting your vehicle’s make, model, and year into tire and wheel retailer websites to display the correct bolt patterns automatically. These digital tools eliminate guesswork and provide manufacturer-specified measurements for your exact vehicle.

Manual entry options allow you to input your measured bolt pattern directly when you prefer to verify your measurements. Most websites accept both metric and imperial measurements, making cross-referencing easier for international or mixed-standard rims. Online charts provide instant conversions between measurement systems when you’re working with different standards.

Wheel visualizer features on many retailer websites let you preview new wheels on your exact vehicle before purchase. These tools show how different rim styles and sizes appear on your car, helping you confirm both aesthetic preferences and fitment compatibility. Visual confirmation reduces the risk of ordering incompatible wheels that won’t fit your vehicle’s specifications.

Tool Type Features Best Use Case
Vehicle Lookup Make/model/year input Quick verification
Manual Entry Direct pattern input Custom measurements
Visualizer Wheel preview Fitment confirmation
Conversion Charts Metric/imperial conversion International compatibility

Database searches provide comprehensive bolt pattern information across multiple manufacturers and vehicle years. We suggest using multiple online resources to verify your measurements, as different websites may offer varying levels of detail and accuracy. Cross-referencing between several reliable sources ensures you have the correct bolt pattern before making your purchase.

Mobile apps from major tire retailers offer convenient access to bolt pattern information while you’re shopping in-store or at salvage yards. These applications often include barcode scanners that identify wheel specifications instantly when you scan existing rims or packaging labels.

Conclusion

Getting your rim bolt pattern measurement right the first time saves us money time and potential safety hazards. We’ve covered the essential tools techniques and verification methods needed to ensure accurate measurements for any bolt configuration.

Remember that precision matters when it comes to wheel fitment. Even small measurement errors can lead to compatibility issues that compromise our vehicle’s safety and performance.

We recommend double-checking our measurements using multiple methods and leveraging online tools for final verification. Taking these extra steps ensures we’ll find the perfect wheels that fit securely and look great on our vehicles.

With the right approach and attention to detail measuring rim bolt patterns becomes a straightforward process that sets us up for successful wheel purchases every time.

Frequently Asked Questions

What is a rim bolt pattern and why is it important?

A rim bolt pattern refers to the number of bolt holes and the diameter of the circle they form on your wheel hub. It’s crucial for ensuring new wheels are compatible with your vehicle. An incorrect bolt pattern can lead to safety issues, poor performance, and expensive returns or exchanges.

How do I read bolt pattern measurements?

Bolt patterns are written as two numbers, like 5×114.3mm. The first number indicates the quantity of bolt holes, and the second number represents the pitch circle diameter (PCD) in millimeters. This notation tells you exactly what wheel specifications your vehicle requires.

What tools do I need to measure my car’s bolt pattern?

Essential tools include a ruler or tape measure, digital calipers for precision, and optionally a wheel bolt pattern gauge. Digital calipers provide the most accurate measurements, which is crucial for proper wheel fitment and avoiding costly mistakes.

How do I measure a 5-bolt pattern accurately?

For 5-bolt patterns, measure from the center of one bolt hole to the center of the bolt hole two positions away (skipping one hole). This gives you the PCD measurement. Always verify with multiple readings to ensure accuracy.

What are the most common bolt patterns for passenger cars?

The most common bolt patterns for passenger cars include 5×114.3mm, 5x100mm, and 4x100mm. Five-bolt configurations are the most prevalent, though specific patterns vary by manufacturer. Consulting your owner’s manual or wheel markings can help verify your vehicle’s pattern.

Can I use online tools to verify my bolt pattern measurements?

Yes, many tire and wheel retailer websites offer bolt pattern tools where you can input your vehicle’s make, model, and year for automatic specifications. You can also manually enter your measured patterns to verify compatibility before purchasing new wheels.

What happens if I buy wheels with the wrong bolt pattern?

Wrong bolt patterns can cause serious safety issues including uneven stress distribution, poor handling, and potential wheel failure. Financially, you’ll face return costs, exchange fees, and additional mounting and balancing charges, making accurate measurement essential before purchasing.
